Dispenser Array Forensic Report

I. Project Summary

• Role: Principal Systems Architect — the dispenser array of the Hyphen augmented makeline.
• Mandate: Make 500+ unique food ingredients robotically dispensable — across every viscosity, density, and fragility class a restaurant menu can throw at a machine — at sub-second cadence and gram-level accuracy.
• Core Achievement: A six-type dispenser taxonomy spanning 70+ actuators that cut portion variance from the industry’s ±15% to ±2%, feeding 350 meals per hour at 99%+ order accuracy.

II. The Anatomy of Failure

1. The Clump Crisis: Food Is Not a Material Spec

• Trigger: Ingredients defy industrial dosing logic. Cold-held rice agglomerates into non-Newtonian clumps; braised meats congeal; early footage caught “ingredient ricochet” spraying cross-contamination inside the chassis. A dispenser tuned for fresh rice over-portions the same rice three hours colder.
• Intervention: De-agglomeration as a control loop: density sensors detect when the hopper’s contents have clumped and the actuators apply calibrated force to separate grains and fibers before release, while gram-accurate scales close the loop on every dispense — adjusting motor torque in real time as ingredient physics drift through the day.
• Result: ±2% portion variance regardless of ingredient state, cutting food waste by 98% against the manual baseline.

2. The Taxonomy: Six Machines Instead of One Compromise

• Trigger: A universal dispenser is a universal failure — augers pulverize chips, gravity valves drip guacamole forever, pistons crush lettuce.

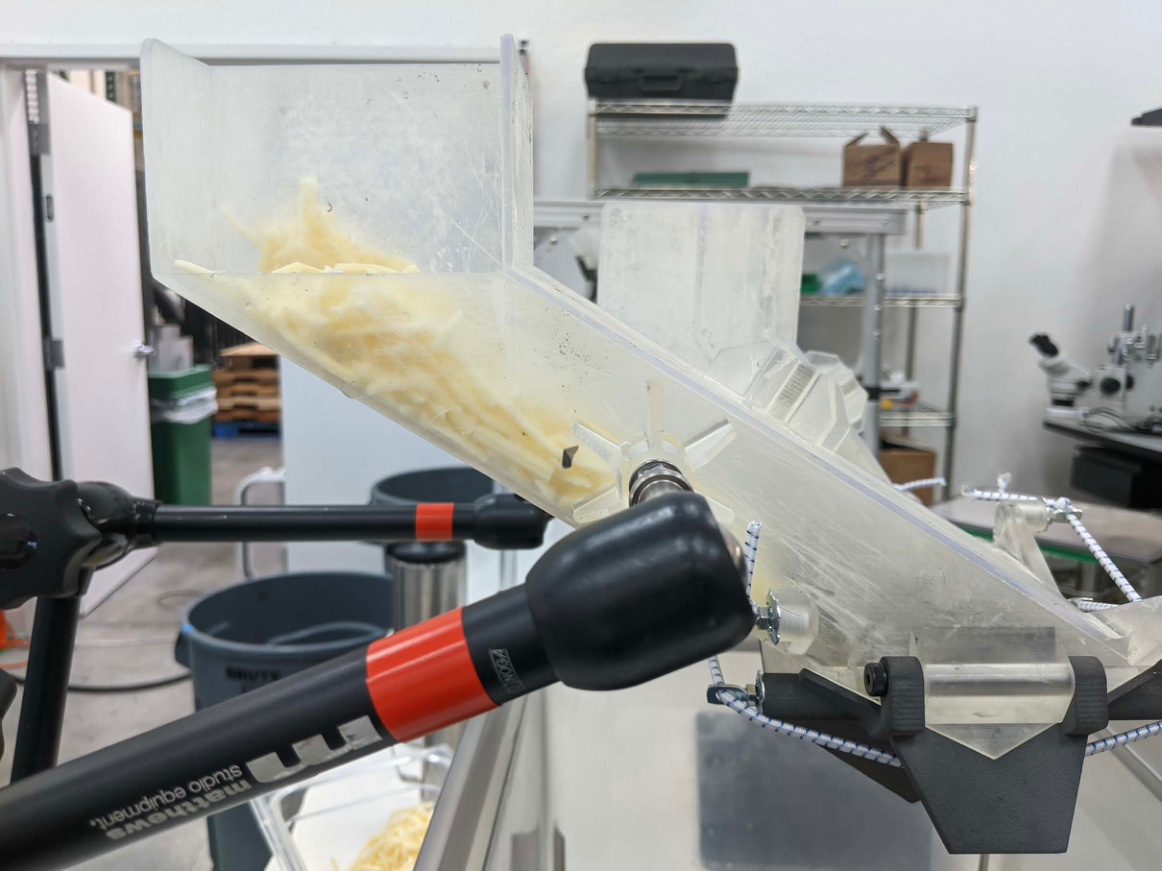

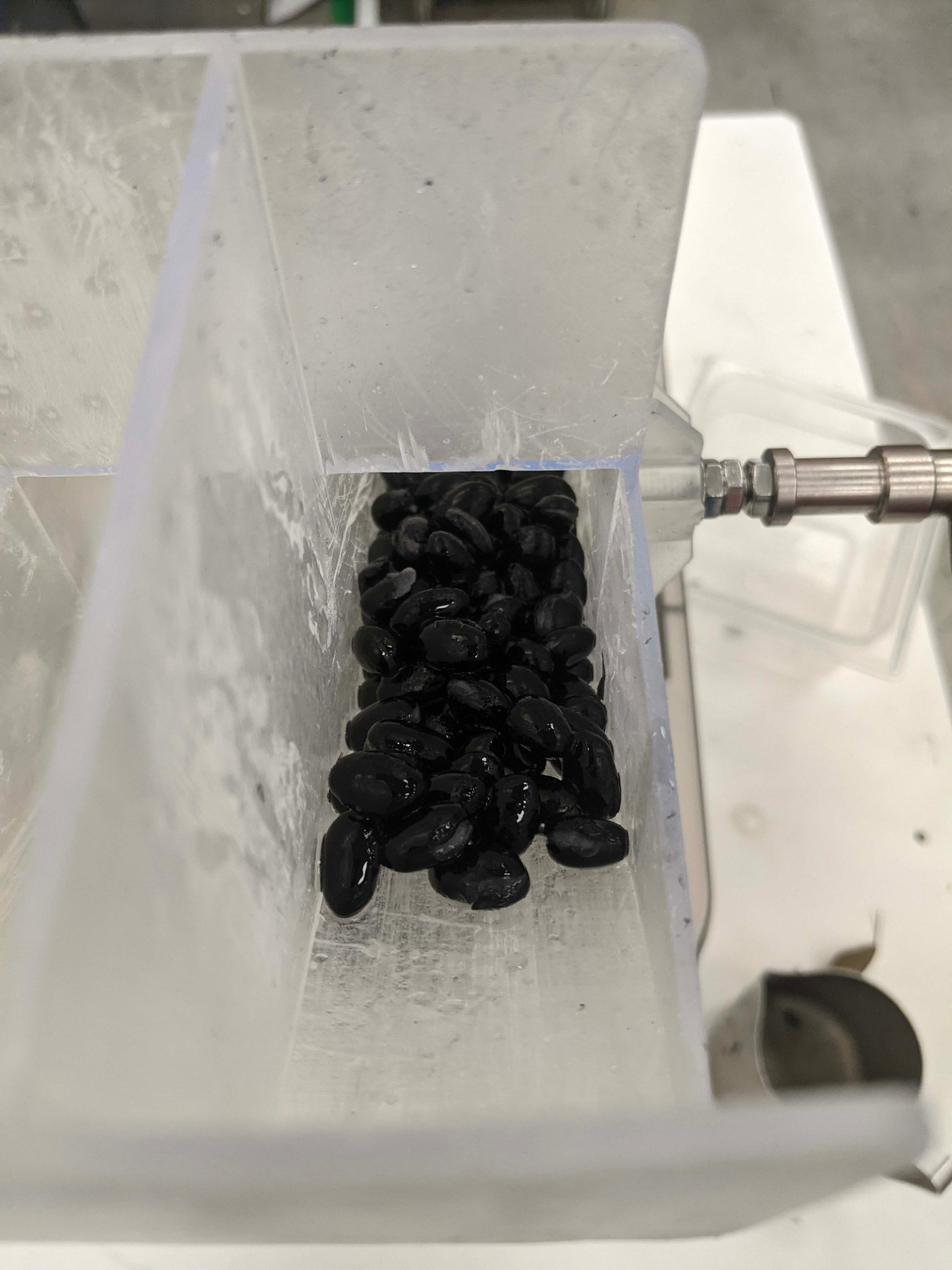

• Intervention: Bifurcated the hardware into six types matched to material physics: adaptive metering for the generalist bulk (rice, beans, corn); an automatic chute that cleanly shears viscous pastes to kill the infinite drip; flexible agitators that disrupt braised-protein fibers without dispensing only juice; positive-displacement piston fill for exact liquid volumetrics independent of hopper level; a rotating paddle with trapdoor release that sweeps chips and leafy greens without compression; and a horizontal architecture that keeps heavy wet ingredients from compacting under their own weight. All in standard hotel pans — swap chicken for tofu in seconds, software recalibrates.
• Result: Material agnosticism across 500+ ingredients on one hardware platform — and an honest boundary: the system explicitly surrenders fanned avocado and flaky salmon to human hands via the entrée elevator, using human dexterity as the failover for what robotics can’t gently do.

3. The Bio-Load: Sanitation by Design

• Trigger: Seventy-plus actuators in contact with organic matter is a cleaning nightmare and a pathogen vector — trapped ricochet residue rots where brushes can’t reach.

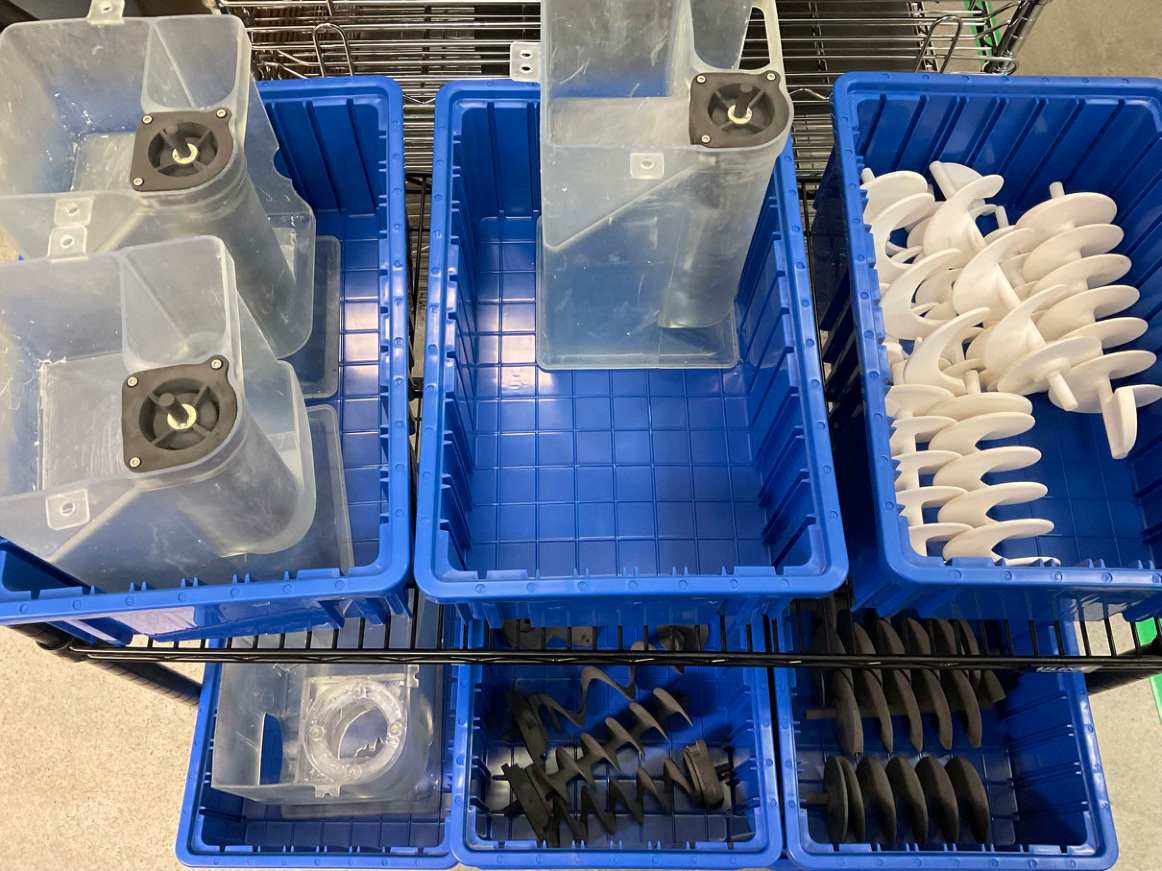

• Intervention: Push-to-unlock toolless disassembly on every food-contact component, all sized for standard commercial dishwashers — sanitation engineered into the geometry rather than bolted onto the procedure.
• Result: A 15-minute full sanitization cycle, neutralizing the shift-change bottleneck that kills most kitchen automation in practice.

III. Governance & Rhythm

• The Pulse: Deterministic control on a Beckhoff industrial PC with TwinCAT core isolation — real-time PLC, IoT gateway, and HMI partitioned so cloud latency can never stall an actuator — under a stage-gate path from Cultivate Center lab testing (2023) to live restaurant pilot (2024).
• The Artifacts: The dispenser taxonomy matrix; the stage-gate logs; the toolless-maintenance ECO series; the patent figures documenting hopper, chute, and sensor architecture.

IV. Quantified Impact

• Reduced portion variance from ±15% to ±2%, cutting food waste 98%.
• Engineered the six-type taxonomy handling 500+ unique ingredients on one platform.
• Deployed 70+ actuators within a standard kitchen footprint via the EtherCAT bus.
• Sustained 350 meals/hour at 99%+ order accuracy in high-volume pilots.
• Achieved the 15-minute full-sanitation cycle through toolless food-contact design.
• Bounded automation honestly — human-finish failover for aesthetics robotics can’t preserve.

V. Source Trail

The claims above rest on the project’s primary evidence archive — patent figures, taxonomy documentation, and engineering notes — compiled through the NotebookLM forensic registry:

• dispensers.pdf — actuator and chute mechanics.

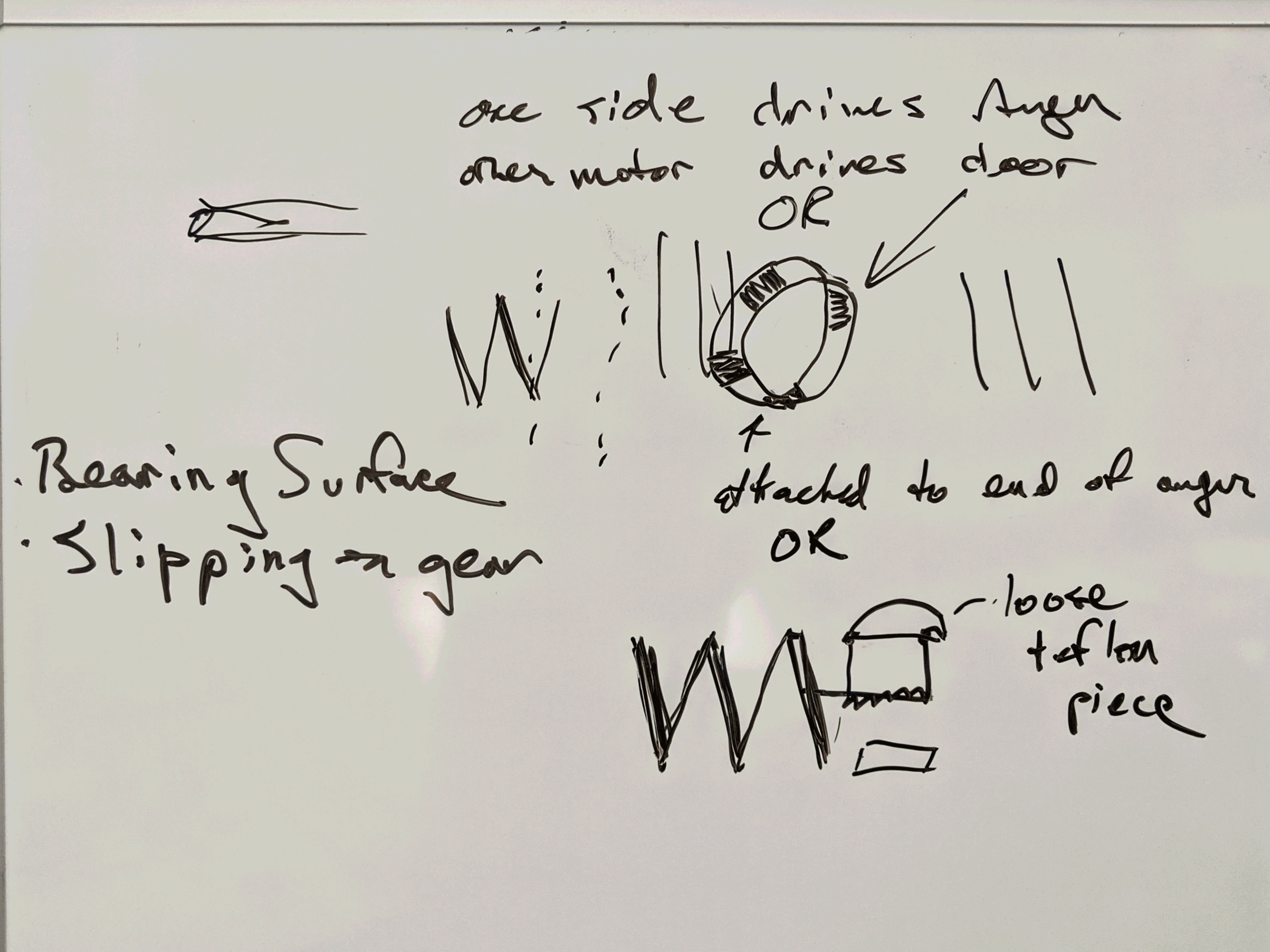

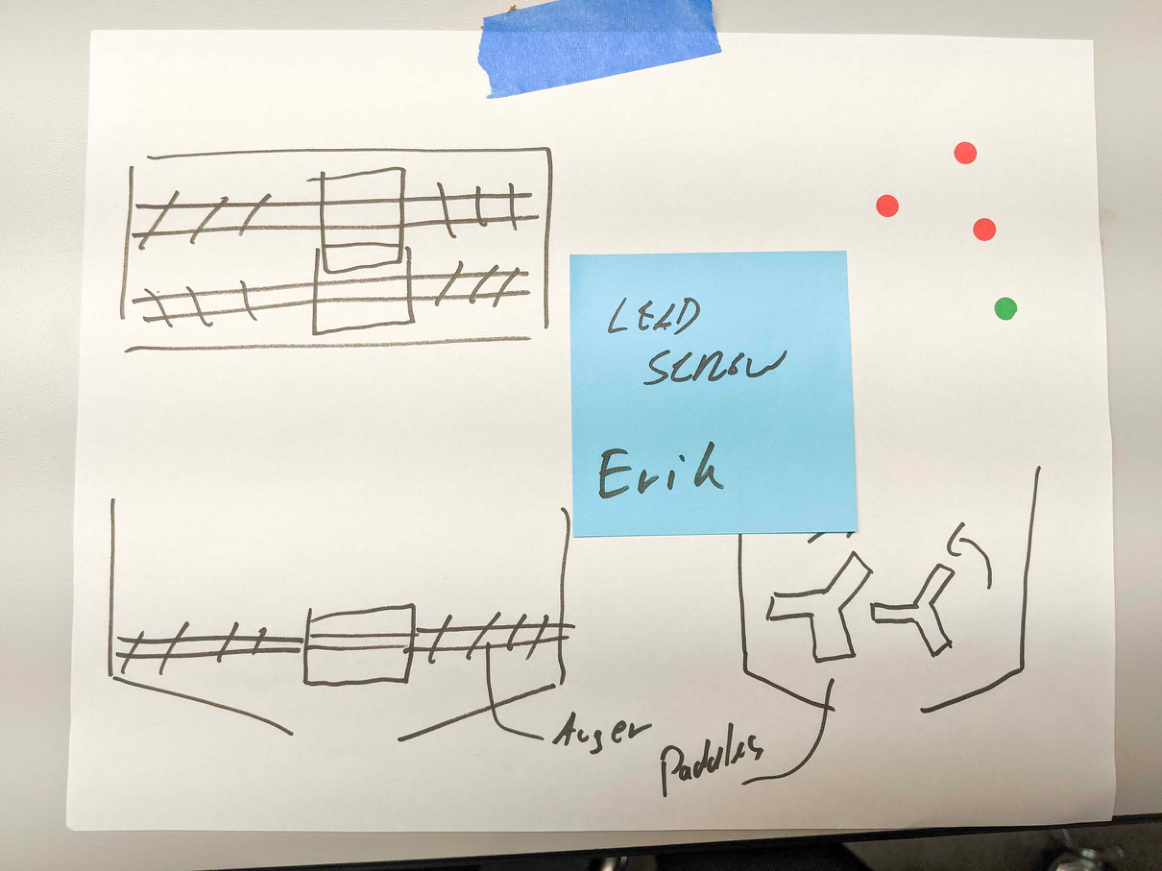

• makeline.pdf — the top-down Type A–F array layout and handwritten auger-vs-paddle R&D notes.
• Patent FIGURE 8A/8B — food dispensing modules and thermal infrastructure.
• The Dispenser Taxonomy Matrix (Types A–F).
• Stage-gate logs — Cultivate Center (2023) to live pilot (2024).
